VS Unisystem 4 in 1 Selector (Single Monitor) Vector Labs Switcher

VS Unisystem 4 in 1 Selector (Single Monitor) Vector Labs Switcher
$119.00 *

Includes tax / shipping cost not included

Ready to ship!
This items ships quickly

How many adapters do you want?:

Add a Switcher Power Cable?:

  • VLUNI.1
The VS Unisystem selector lets you play up to four VS Unisystem or other Nintendo Pcb's in... more
Product information "VS Unisystem 4 in 1 Selector (Single Monitor) Vector Labs Switcher"

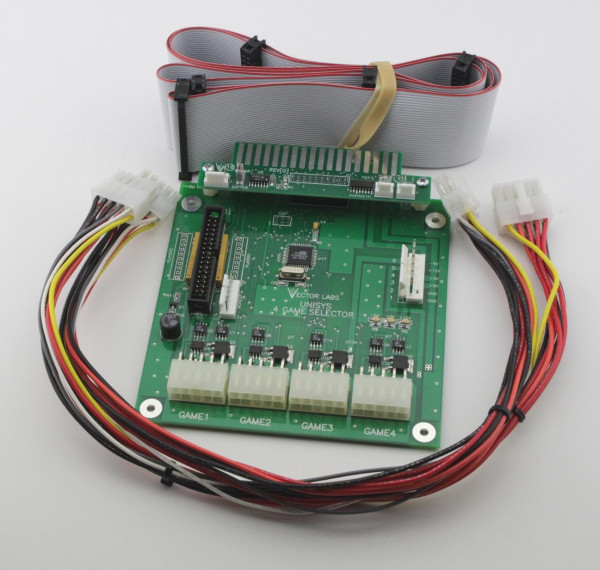

The VS Unisystem selector lets you play up to four VS Unisystem or other Nintendo Pcb's in youe single monitor VS cabinet. Solid state switching for quiet reliable operation. Can use a mix of up to four of the adapter boards (Popeye, Mario Bros, JAMMA, vs Unisystem)

Each 4in1 Selector comes standard with two adapter power cables, additional cables can be purchased for $5 each. The ribbon cable does support up to four adapters.

 features200

 To switch from side to side -

  • Hold P2 then move joystick left or right to switch sides.
  • The Unisystem adapter jumpers need to be set so that the selector knows that the game PCB is two sided

Jumper   A    B    C

  •                on  off  on   VS side A only (w/gun)
  •               on  off  off   VS side A only (NO gun)
  •               off   on   on  VS side A and side B (NO gun)

In order to use the VS unisystem selector you need to use the standard control panel without the light gun. If you want to play light gun games then the gun needs to be directly connected to the VS selector. Also each VS adapter needs to be jumpered with the correct configuration to match the VS board as below:

  • LO= jumper on
  • HI = jumper off
  • A = LO,  B = LO, C = HI  STANDARD DK ADAPTER OR PC10
  • A = LO,  B = HI,  C = LO  VS UNISYS SINGLE WITH GUN
  • A = LO,  B = HI,  C = HI  VS UNISYS SINGLE NO GUN
  • A = HI,   B = LO, C = LO  VS UNISYS DOUBLE NO GUN
  • A = HI,   B = LO, C = HI  JAMMA ADAPTER
  • A = HI,   B = HI,  C = LO  PUNCHOUT DUAL OR PLAYCHOICE DUAL
  • A = HI,   B = HI,  C = HI  NO ADAPTER INSTALLED




When you connect the light gun directly the selector it will automatically enable or disable the gun depending on the adapter selected.

-5v is not used on the VS system so the LED will not be lit. The gun has to be plugged into the VS selector before the cabinet is powered up. The bypass harness needs to be disconnected and the control panel has to have both joysticks/buttons hooked up.

In other words, the VS system needs to be in the factory configuration without any gun mods installed. The VS selector takes care of any control panel or harness switching between gun and non gun games.





All Vector Labs products have a limited lifetime warranty from defects in workmanship. We cannot warranty our products from improper installiation, power surges, lightning strikes, etc.  All of our products have install guides in PDF format that you can download in advance of ordering so that you can determinine if you have the technical skills to perform the install.

Related links to "VS Unisystem 4 in 1 Selector (Single Monitor) Vector Labs Switcher"
Read, write and discuss reviews... more
Customer reviews for "VS Unisystem 4 in 1 Selector (Single Monitor) Vector Labs Switcher"
11 Nov 2023

Highly recommended

Works perfect and arrived in 3 days

9 Oct 2020

Excellent Switcher Terrific Customer Service

I bought this to put multiple boards in my Nintendo VS Super Mario Brother cabinet. I am very happy with the way it works and the fact it gives you access to the other side of the VS board. had some issues at first, Joe helped me over the phone and resolved it no problem.

Write a review and tell everyone what you think about this product
Reviews will be activated after verification.

The fields marked with * are required.

I have read and agree with the Policies of Highscoresaves.com

Questions and Answers... more
Here are some common FAQ's / Questions for this product
Ask a question about this product

The fields marked with a "*" are mandatory. Your email addresss or last name will not be posted publicly

Thank you! We will try to answer them as soon as possible and post it here if appropriate for others.
Switcher

I want to switch between DK and DK Jr PCB boards in my DK cabinet. Does this do that? Does it allow switching between 4 Nintendo PCB boards? (DK, DK Jr, DK 3, Popeye)

No.

You want to use a Nintendo classic pinout switcher like one of these -

3 pcb Nintendo switcher -

https://highscoresave.com/a-highscoresave-exclusive-nintendo-3-game-switcher/

2 pcb Nintendo switcher -

https://highscoresave.com/a-highscoresave-exclusive-nintendo-2-game-switcher/

4 pcb Nintendo switcher -

https://highscoresave.com/dk-4-in-1-game-selector/
