A HighScoreSave Exclusive - Nintendo 3 Game Switcher
Includes tax / shipping cost not included
Ready to ship!
This items ships quickly
- Order number: 3WAYNINT
Privacy Information: The sharing buttons are implemented as a link. No data will be transmitted to third parties without interaction.

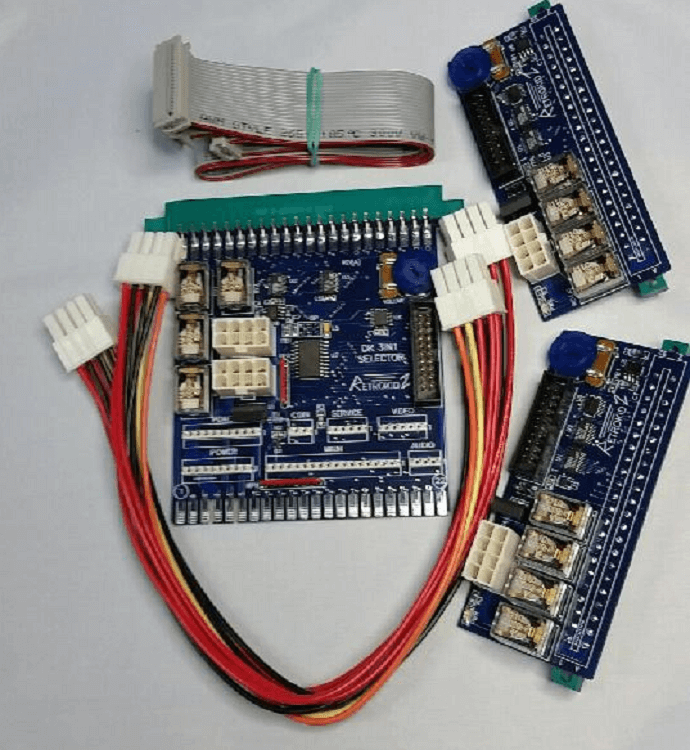

No Need to buy additional adapters, comes with everything you need to switch between 3 Nintendo Classic Pinout pcbs. This Nintendo 3 game switcher allows you to play three Classic Nintendo pcbs in your cabinet.
- Simple to install
- Easy to switch between boards
- Powers 1 pcb at a time
- No need to go inside cabinet to change the harness from one pcb to the other
- Switches 5V, 12V, and -5V Power to each gameboard (again, one pcb at a time)
- Coin up option (just press P2, then up or down on joystick to add credits)
- Change game boards by holding P2 Start and then tap JUMP
- The orientaton of your monitor is important for each PCB. For example, you will not be able to put a Popeye (horizontal orientation) pcb in with a Donkey Kong (vertical orientation) pcb. Well, you could but your neck will hurt...
- If you are using the edge connector or the pin connectors on the switcher, you will need a "rainbow" power cable installed on your pcb from the CPU board to the Video board for power.
- This switcher will not work with a 4 PCB stack since it does not use an edge connector
- If you are using the edge connector or the pin connectors on the switcher, you will need a "rainbow" power cable installed on your pcb from the CPU board to the Video board for power.
- Each satellite board has a 3pin jumper labeled B & C. Carefully look at each satellite board to make sure that one is jumpered to B and the other is jumpered to C.
- Having the satellite boards jumpered to the same setting could damage the satellite board and your game PCB.
Will work with all Nintendo Classic pinout games -
- Donkey Kong
- Donkey Kong Jr
- Donkey Kong 3
- Mario Bros
- Popeye
- and others....
Great product!
Easily switches my Donkey Kong, Donkey Kong Jr. And Donkey Kong 3 pcbs!
Get it while you can!
Been out of stock for a while, well worth the wait!
Just what I needed!
Excellent product well worth its price. The installation guide should mention that you have to cut off the "hooks" from the power cable connectors, otherwise they will not fit.
About time!
Cheap price and great way to add DK, DKJR and DK3 in the same cabinet
Yeah buddy!
A great switcher at an even better price! About time someone made a 3 in 1 switch for Nintendo...you guys rock!
Woot!
I was able to beta test this switcher and I have to say, I love it!
I bought all the high score save kits for my Kong boards. Then I would rotate them in my cabinet to play by changing them out through the back door.
No more!
Easy to install. Keeps all my boards inside the cabinet and I can switch them from the control panel!!! Yes!!
Does this switcher need "Rainbow Cables"?
If you are using the edge connector or the pin connectors on the switcher, you will need a "rainbow" power cable installed on your pcb from the CPU board to the Video board for power.
How do you swap pcbs when using the switcher?
In the current version - change game boards by holding P2 Start and then tap P1 Start
ON THE NINTENDO 2 WAY SWITCHER -
In previous versions - change game boards by holding P2 Start and then tap joystick to the right. To go back to the first pcb, do the same, but, hold left. (2018 and older models)
Coin up option (just press P2, then up or down on joystick to add credits) But we suggest a High Score Save Kit for free play and other enhancements.
ON THE NINTENDO 3 WAY SWITCHER -
Change game boards by holding P2 Start and then tap JUMP. To go back to the first pcb, do the same.
Coin up option (just press P2, then up or down on joystick to add credits) But we suggest a High Score Save Kit for free play and other enhancements.
Will this work with only two boards in the cabinet?
Yes!
The 3 in 1 Nintendo switcher is perfect for you. If you only have two Nintendo Classic pcbs right now (ie. DK &DKJr for example), you can use the first two connections. If you decide to add another down the road (like DK3) it'll be there waiting!
