Champion Edition CPS2 Key Writing Cable

cps2 key writing adapter
$14.95 *

Includes tax / shipping cost not included

Ready to ship!
Shipping usually within 24 hours

  • KWCABLE
Need Key Writing Adapter Cable for your "Champion Edition" Darksoft CPS2? This is a 4... more
Product information "Champion Edition CPS2 Key Writing Cable"

Need Key Writing Adapter Cable for your "Champion Edition" Darksoft CPS2?

This is a 4 wire adapter that connects to the 6 pin headers on the kit and CN9 of you "B" board. This is approximately 4" long for easy connectivity...

All units of the Champion Edition version, come with a firmware installed that allows to use original untouched romsets. In order to use them, you need to plug a cable between the main PCB of the kit and connector CN9 of your B Board. If you have one of the old type B boards, then, you'll need to solder 4 wires between this connector in the main PCB of the kit and CN2 of your B Board. Further details are given below.

We implemented the key writing process discovered and made available thanks to arcadehacker.blogspot.com/

Programming of the key is done with 4 additional signals called DATA, CLOCK, SETUP1 and SETUP2. Those signals are available in pins 2,3,4 and 5 in the connector J18 of the multi.It's located besides the microSD slot. There is a special connector, in the main PCB of the multi, so that it's very simple to connect to the same connector that you will find on your B Board. This applies to the revisions 93646B-5 and upwards. The revisions 93646B-3 and 93646B-4, don't have this connector. However you can find the very same pins available on the connector CN2.

Pinout for board revisions 93646B-3 and 93646B-4

CN2 interface pins:

  • Multi connector J18 pin #2 → CN2 A32
  • Multi connector J18 pin #3 → CN2 A30
  • Multi connector J18 pin #4 → CN2 A31
  • Multi connector J18 pin #5 → CN2 A29

Pinout for board revisions 93646B-5, 93646B-6, 93646B-7 and 97691A-3

CN9 interface pins:

  • Multi connector J18 pin #2 → CN9 pin #2
  • Multi connector J18 pin #3 → CN9 pin #3
  • Multi connector J18 pin #4 → CN9 pin #4
  • Multi connector J18 pin #5 → CN9 pin #5

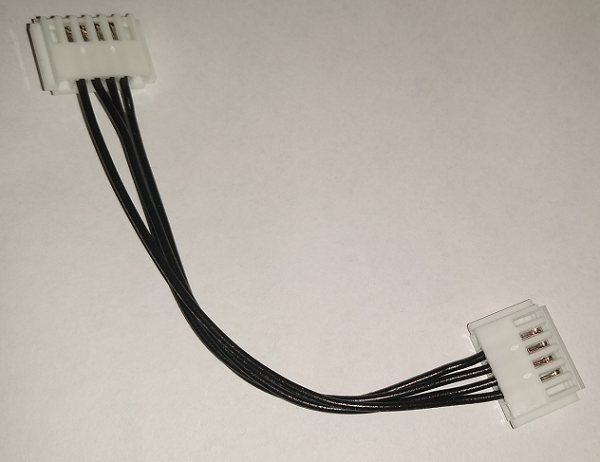

What it will look like (colors on cable will vary) -

1nlT5LcGDAWu1H





2dG9Z0yu6fU9HI



If for any reason you need to update the firmware on your CPS2 Multi, take into account the following

WARNING:

DO NOT INSTALL THE WIRES UNTIL AFTER UPDATING THE FW!!!! IF THE WIRES ARE INSTALLED WHILE TRYING TO UPDATE THE FW YOU WILL CORRUPT THE

BOOT-LOADER ON THE KIT AND YOU WILL HAVE TO REWRITE IT USING A STM32F4 DISCOVERY KIT!!!
